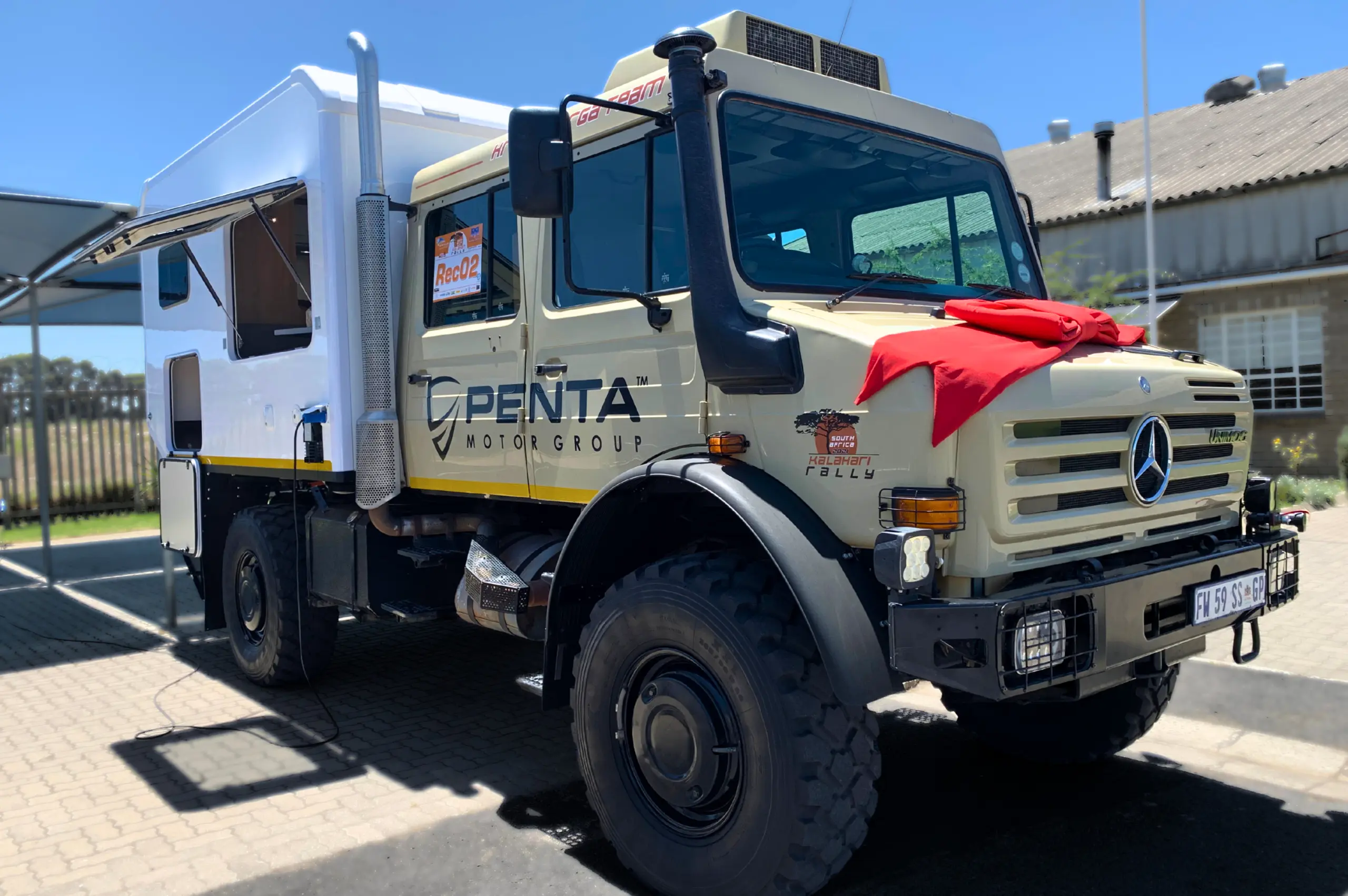

Discoverer Xtreme 4x4 – Mercedes-Benz Unimog U4000
Purpose-built for terrain that ends other journeys.
features
Built For Ground That Refuses Easy Passage.
A Platform With Nothing Left To Prove
The Unimog U4000 carries a reputation earned in the harshest conditions on earth, built to move when other vehicles stop. That capability comes standard, not as an afterthought bolted onto a road-going chassis.
Composure Where The Route Gets Difficult
Steep climbs, loose surfaces, and terrain with no clear line through it are met with the same steady control. The drive stays predictable even as the ground beneath it stops being forgiving.
Composure Where The Route Gets Difficult
Steep climbs, loose surfaces, and terrain with no clear line through it are met with the same steady control. The drive stays predictable even as the ground beneath it stops being forgiving.
Built For Journeys With No Turning Back
When the destination sits beyond where ordinary vehicles can reach, the U4000 keeps going. It’s engineered for travellers who plan around what’s possible, not what’s convenient.
Make It Yours
Tailor Your Discoverer Xtreme 4x4 – Mercedes-Benz Unimog U4000 To Suit Your Travels.
Explore our full range of customisation options — from layout and finishes to off-grid power and storage upgrades.
- Accessories and custom options may vary depending on your chosen model. Our team will guide you on what is available for your specific build.
LAYOUT
Floor Plan
Click to Magnify
TECHNICAL DETAIL
Specifications.
| Engine | Mercedes-Benz OM 924 LA |
| Type | 4-cyl turbo-diesel, intercooled |
| Displacement | 4,801 cc |
| Power | 160 kW (218 hp) @ 2,200 rpm |
| Torque | 810 Nm @ 1,200 rpm |
| Emissions | Euro III |
| Gearbox | UG100 8-speed Automated Manual Transmission (AMT) |
| Drivetrain | Permanent 4×4 |
| Transfer Case | High and low range transfer case |
| Torque Split | Permanent all-wheel drive |
| GVM | 7,500 kg |
| GCM | 11,500 kg |
| Kerb Weight | 4,500 kg (approx) |
| Payload | 3,000 kg (approx) |
| Ground Clearance | 420 mm |
| Approach Angle | 44° |
| Departure Angle | 51° |
| Axles | Portal axles front and rear |
| Fuel Tank | 160 L |
| Minimum License Required | Code C (fka Code 10) |
